100ka Lightning Spd 3 Phase Ac Surge Protector

Name: 100ka Lightning Spd 3 Phase Ac Surge Protector
Brand: HAMMOND
Price: 1 USD

Quality 100ka Lightning Spd 3 Phase Ac Surge Protector for sale

Brand Name : HAMMOND

Model Number : HDS-B100

Certification : ISO9001

Place of Origin : China

MOQ : 50

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 8 days

Color : red

Product name : lightning protection box

Maximum Continuous Operating Voltage Uc : 385V

Contact Material : Fiber glass reinforced plastic

Maximum Discharging Cu : 100KA

Nominal Discharging C : 60KA

Contact Now

Ac Spd 385v Surge Protection Device

HDS-B Series surge protective device (SPD) is designed to protect AC 50/60 HZ and 0-380 V power supply systems (such as TN-S, TN-C-S, TT, IT,etc.) The lightning stroke equipotential bonding design meets the IEC61643-1 and GB18802.1 standards. The outside coating attaches to the 35 mm electrical tracks, and the product has built-in auto-release device in case of breakdowns. When the SPD is breakdown, caused by the overcurrent and overheating, the fail part will release from the grid automatically. At the same time, the indicator will glow from green light (normal) to red light (error), and SPD can be replaced under operating voltage.

Specification

Technical Parameters	HDS-B100
Rated Operating Voltage(Un)V	220V / 380V
Maximum Continuous Operating Voltage (Uc)V	385V / 420V
Nominal Discharge Current(8/20μs)KA	60
Maximum Discharge Current(8/20μs)KA	100
Response Time ns	25
Cross Section Area of L/N Cable L/N(mm²)	16, 25
Fuse or Switch Model(A)	63A
Operating Environment Temperature ℃	-40℃~+85℃
Installation	Standard Rail 35mm
Material of Outside Coating	Fiber Glass Reinforced Plastic

100ka Lightning Spd 3 Phase Ac Surge Protector

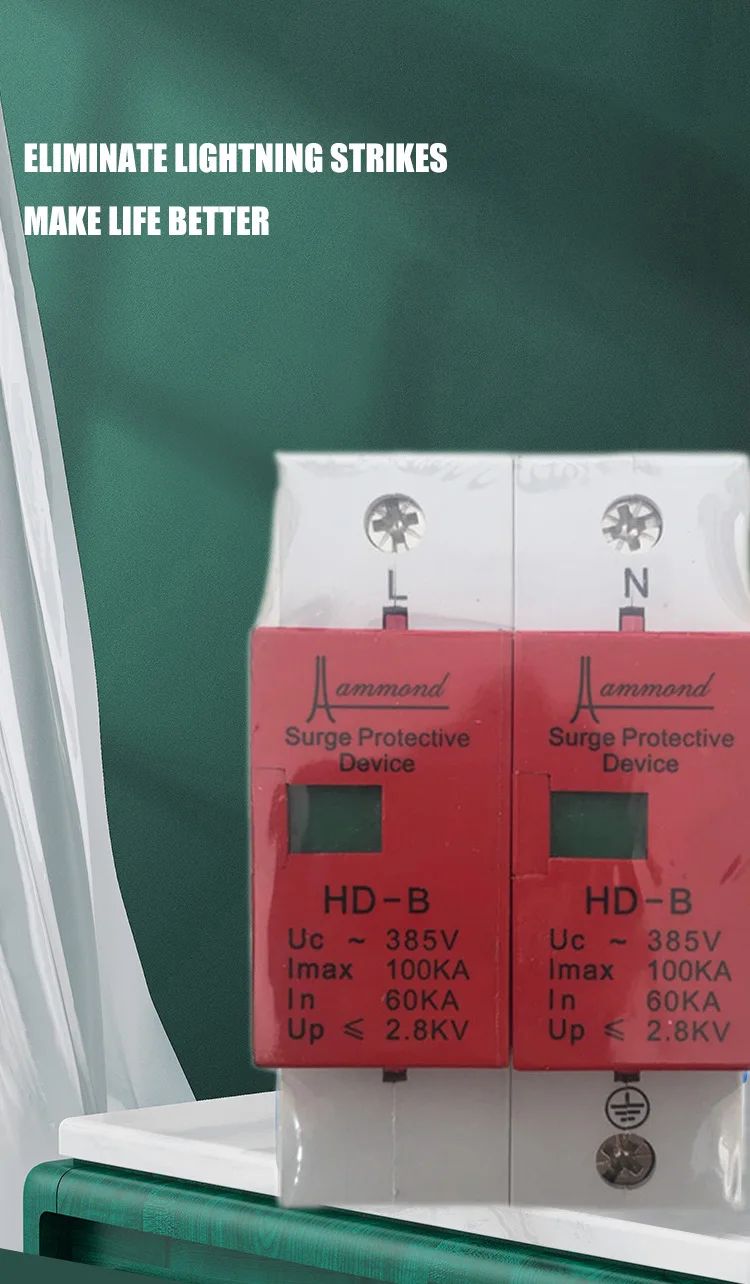

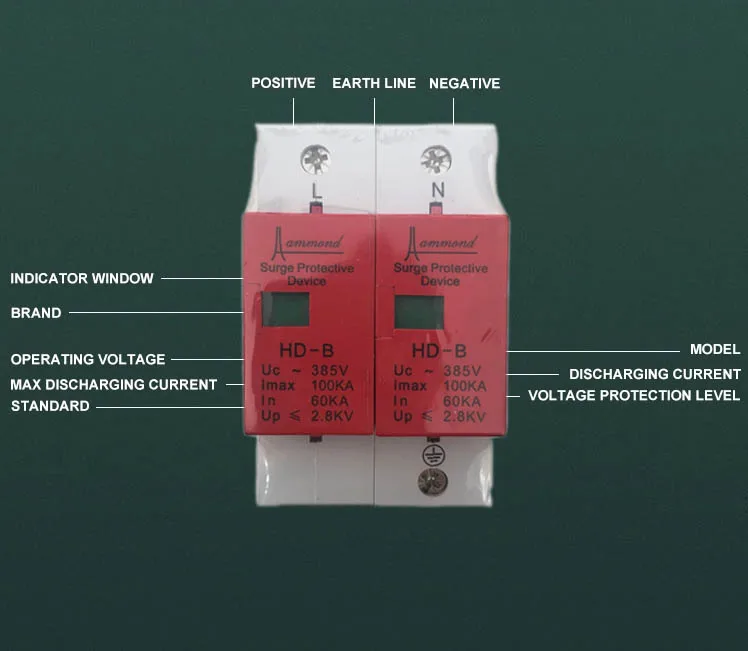

100ka Lightning Spd 3 Phase Ac Surge Protector Images
